Olympus Bariatric Folding Bed

The Olympus Bariatric Electric Folding Bed is a stylish robust easy to use community / care home full electric profiling bed incorporating easy 60 seconds installation and no manual handling.


The Olympus Bariatric Electric Folding Bed which combines ease of handling and functionality with an attractive design to ensure that it is ideal for community and care home use.

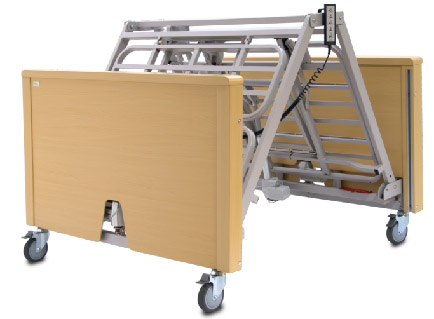

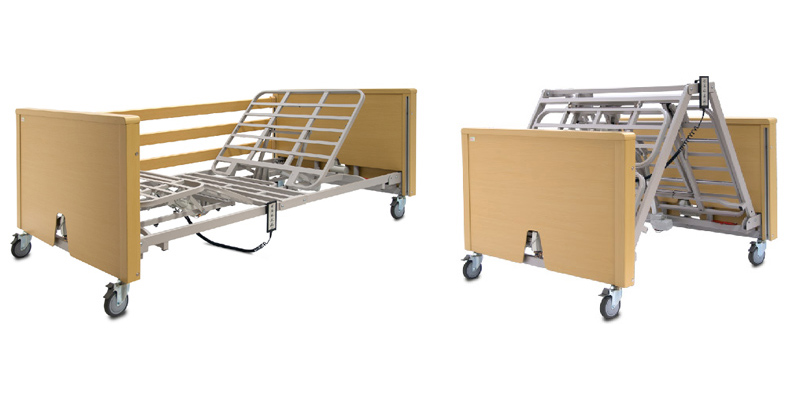

The key feature of this bed is that it folds electrically, meaning it can be delivered and installed by one person. This will save a considerable amount of time and reduce the likelihood / risk of back injury during process of installation.

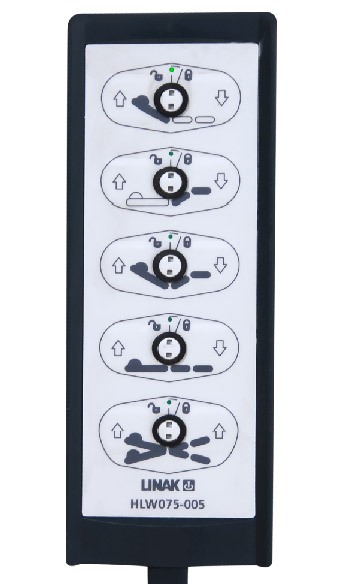

Featuring auto-regression to increase comfort when activating the backrest whilst reducing shear/friction forces. ·Easy to use handset control optimise patient comfort and well-being and complimented by 3 bar, full length safety side rails.

Mattress Platform Width 1200mm

Mattress Platform Length 2150mm

Total Bed Width 1360mm

Total Bed Length 2290mm

Mattress base length 2020mm

Minimum mattress platform height from the floor 330mm

Maximum mattress platform height from the floor 730mm

Maximum User Weight (MUW) 350kg / 55 Stone

Mattress retainers included

Safe Working Load (SWL) 385kg / 60 Stone

Auto-regression built in

Backrest Angle 0-73º

Thigh Section Angle 0-30º

Calf Section angle 13-17º

Caster Diameter 120mm

Detachable Aluminium side rails meet clause of IEC 60601-2-52)

Trendelenburg / reverse Trendelenburg angle 0-10º

Lockable Handset

Warranty on metal work 5 years

Warranty on electrical parts 5 years

Linak Control System
