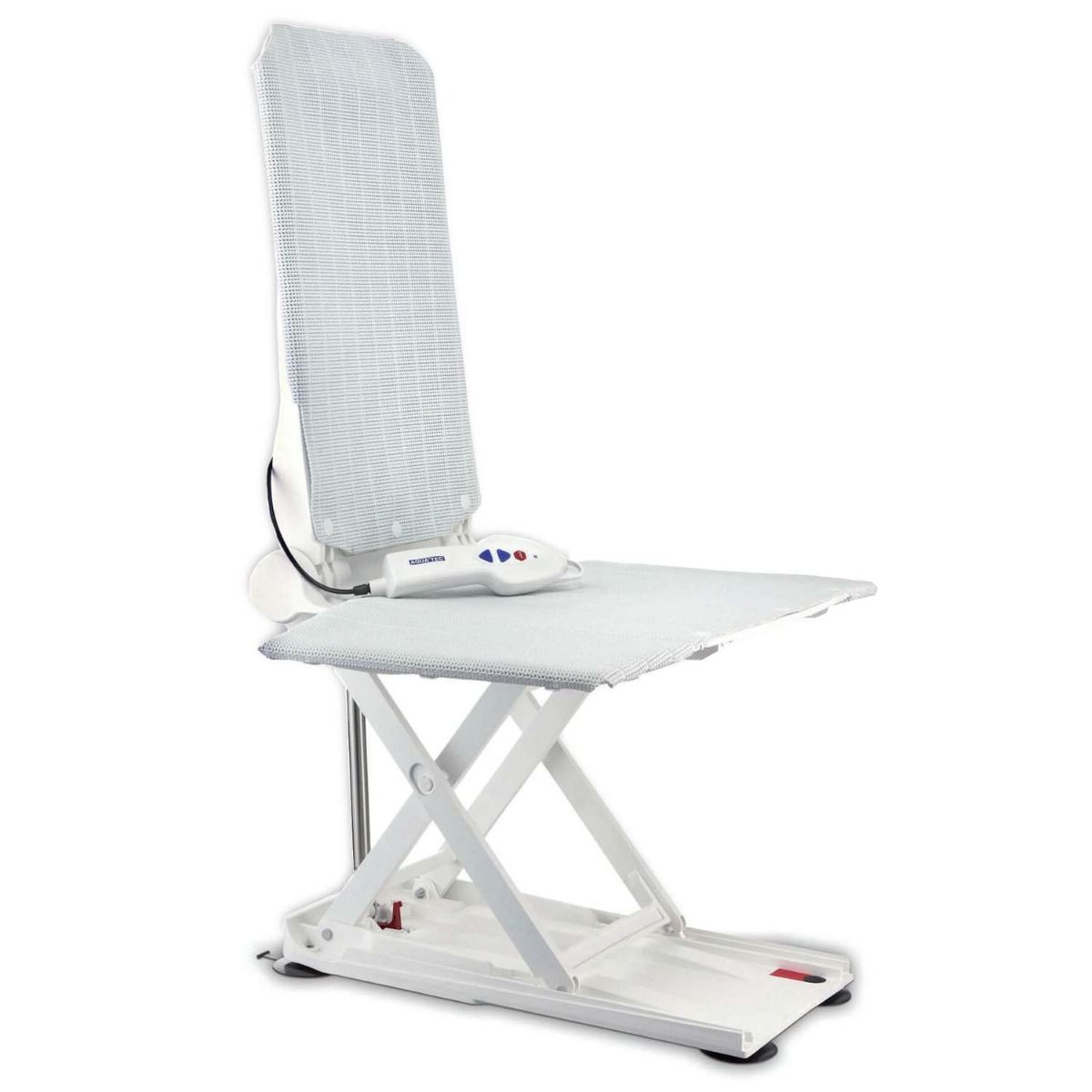

Orca Bath Lifter

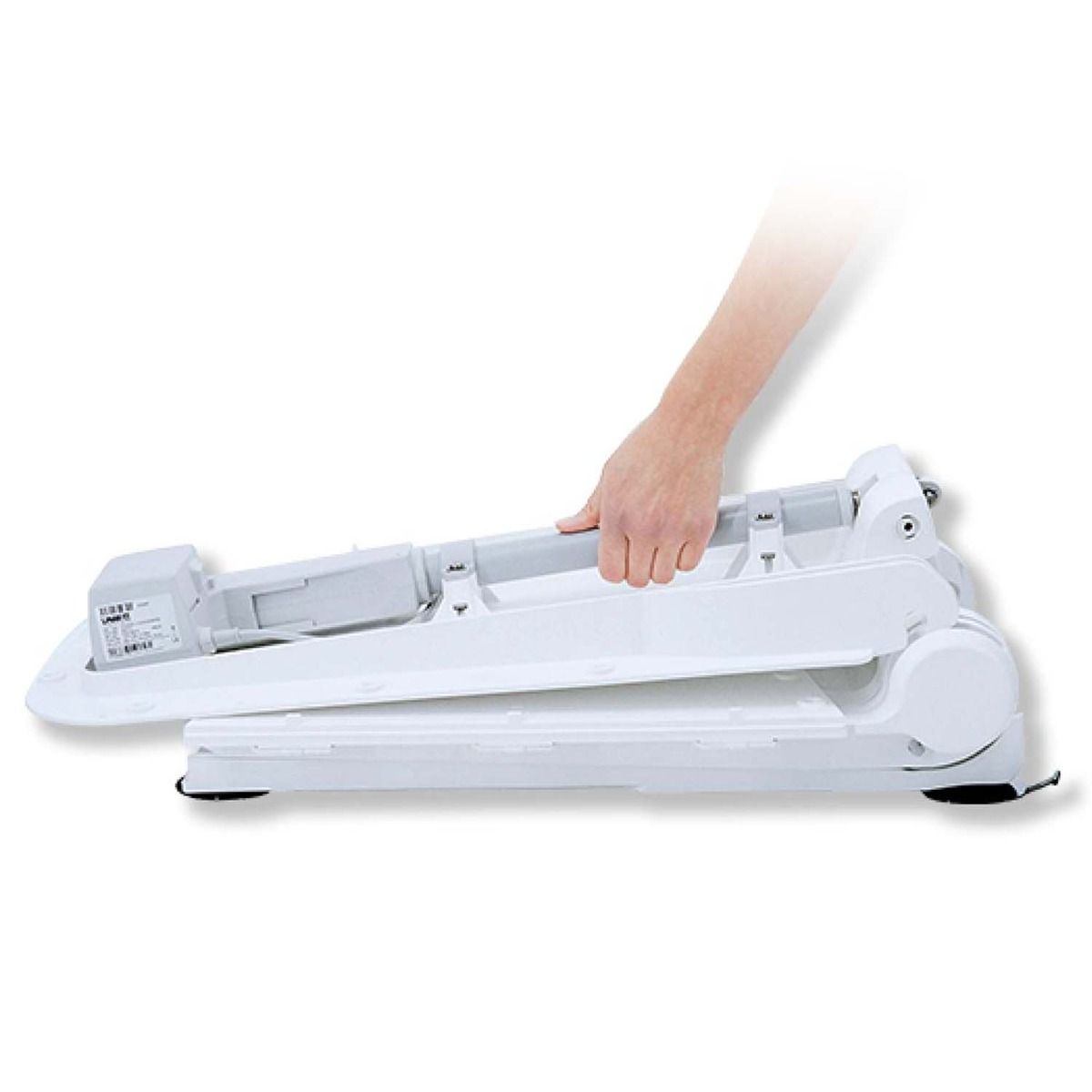

The Orca Bathlifter is comprised of superior quality and durability that is designed to offer comfort, safety and reassurance to those most in need of support as they bathe. The Orca incorporates increased leg room, ease of disassembly and an ergonomic, floating hand control that contains the highly efficient, light weight battery.

Description

Technical data

ARTICLE NO. / ITEM CODE – Orca 1573866 white / 1573876 blue /Orca F 1573682 / Orca XL 1573686

SEAT WIDTH – 375 mm (without side flaps) 715 mm (with side flaps)

SEAT DEPTH – 590 mm

SEAT HEIGHT – 420 mm (max,) – 60 mm (min.)

WIDTH OF BACKREST – 360 mm

HEIGHT OF BACKREST – 665 mm

BASE AREA – 580 x 295 mm

Backrest can be reclined by up to 40°

Total depth – Orca & XL 650 mm (backrest upright) – 920 mm (backrest reclined) / Orca F 690 mm (backrest upright)

TOTAL HEIGHT – 1075 mm

TOTAL HEIGHT WITH BACKREST – 1075 mm

MAX. USER WEIGHT – 140 kg

WEIGHT – 10,8 kg (without hand control)

COVER THICKNESS – 3 mm

COLOUR (OTHER) – White

COMMENT – 4.2 kg (Backrest weight) – 0.4 kg (Hand control weight)
