Description

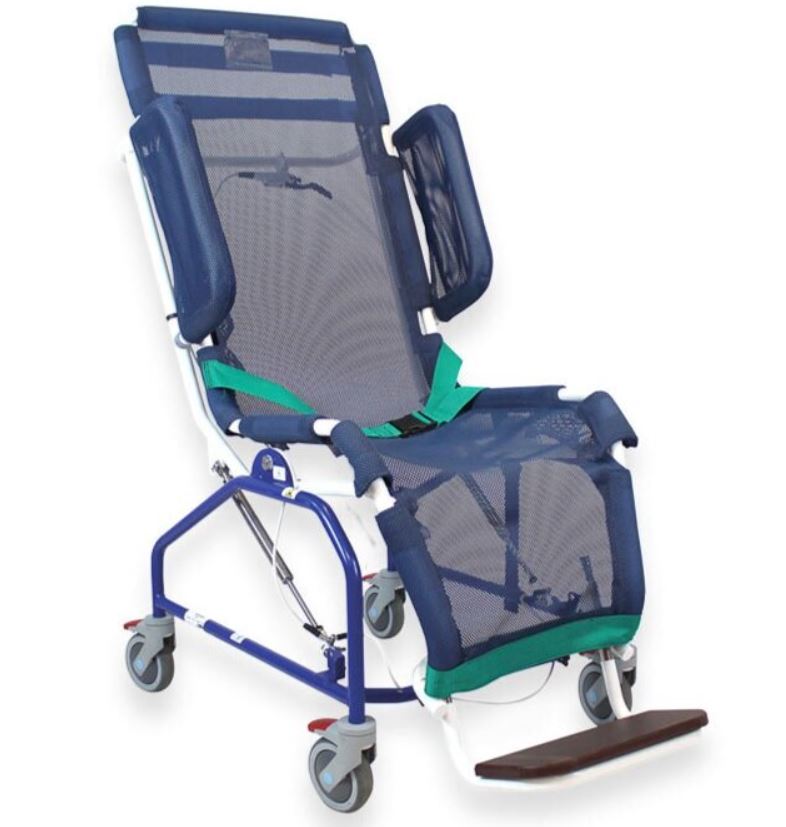

Optional accessories available such as a fully adjustable and removeable foot rest, thoracic supports and hip supports. This cradle is available in both adult and paediatric sizes and the option of either a manual or electronic tilt action, both of which provide a tilting angle between 75° and 35°. Aperture available, and sits comfortably over our commode facility.
Dimensions
A (back width)
B (hip)
C (knee)
D (foot)
E (back length)
F (thigh)
G (calf)
H (overall width)
I (seat height)
J (length upright)
K (overall height)
Reclined Length
Adult Frame
573mm / 22.5”
510mm / 20”
540mm / 21.5”
405mm / 16”
812mm / 32”
405mm / 16”
355mm / 13.25”
670mm / 26.5”
580mm / 22.75”
1010mm / 39.75”
1320mm / 56”
1480mm / 58.25”
Child Frame
557mm / 22”
455mm / 18”
495mm / 18.25”
405mm / 16”
612mm / 24”
355mm / 14”
260mm / 10.25”
670mm / 26.5”
580mm / 22.75”
920mm / 36.25”
1160mm / 45.75”
1200mm / 47.25”
