Effective Pressure Relief by Bilateral Turning
The pressure mapping showcases a proven pressure relief off patient´s body by 30° of bilateral turning.
Effortless, 3-in-1 Therapy Solutions
Turning, Alternating and Continuous Low Pressure modes to tailor to individual pressure care plans.
Improving Circulation & Skin Reperfusion
The unique setting for lateral turning therapy with alternating helps on skin reperfusion by the moderate pressure from each inflation cycle which improves body circulation and skin integrity
Patient Protection Level Up
The side bolsters reduce the risk of entrapment and accidental falling out of bed, also support patient´s arms while in turning therapy.
Heel Relief Function
Single air-cell deflation floats the vulnerable heels with zero pressure.

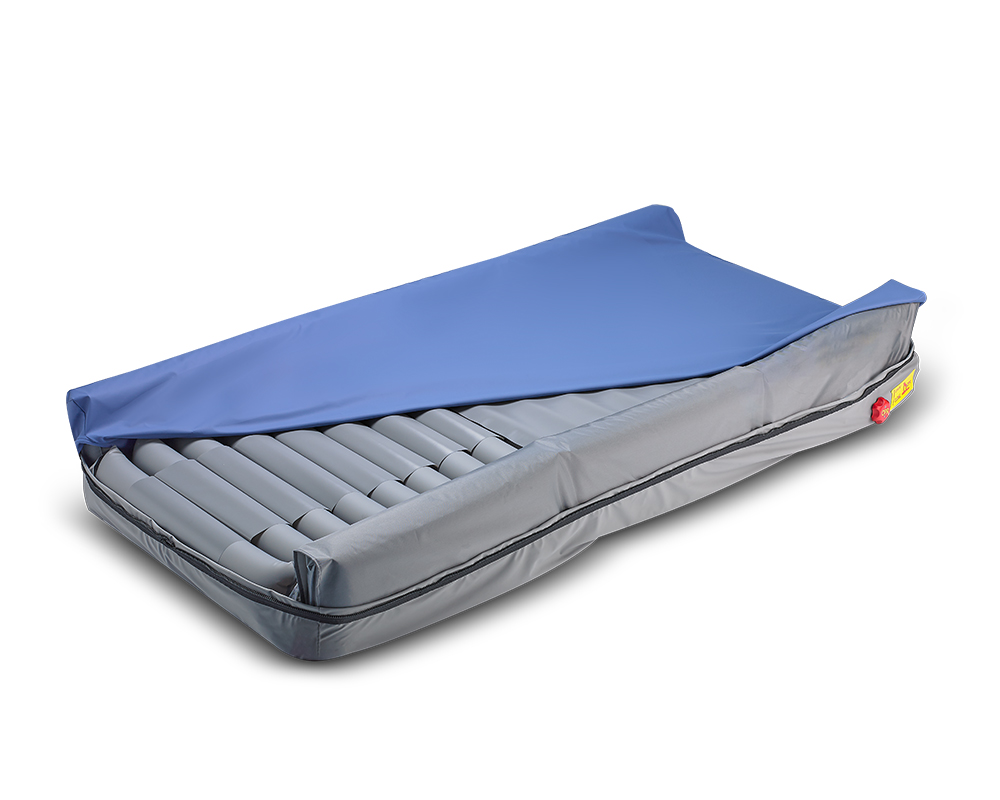

4-way Stretch Cover
Low friction and shear
Vapour permeable, water resistant
Offering extra support in sacral area when in during sitting position
Cable management for a safety operational environment
Mattress remain to be a static surface for 24 hours during power failure and patient transfer.
Model Pro-care Turn (5’’ Replacement)
Pump Dimensions 34.1 x 16.5 x 26.0 cm
Weight 4.5 kg / 9.9 lbs
Case Material Flame Retardent ABS
Supply Voltage AC 120V, 60Hz
Operating Cycle Time 10, 15, 20, 25 min.
Dwell Time 10, 20, 30, 60 min.
Mattress Dimensions 200 x 90 x 13 cm, side bolster 25 cm
Cell Height 13 cm cells with turning cells on the bottom from 4th to 12th
Weight 11.4 Kg / 25 lbs
Cover Material 4-way stretch
Cell Material TPU
Maximum Patient Weight 180 kg / 397 lbs
Flame Retardant Standards EN 597-1 & EN 597-2
